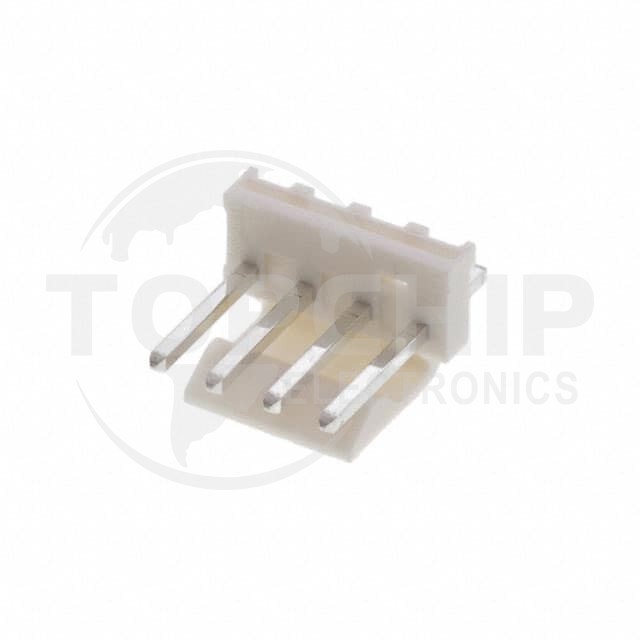

0026604043 Specifications

• Series:KK396, 41791
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.156" (3.96mm)
• Number of Positions:4
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.450" (11.43mm)
• Contact Length - Post:0.170" (4.32mm)
• Overall Contact Length:0.750" (19.05mm)
• Insulation Height:0.446" (11.33mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:60.0µin (1.52µm)
• Contact Finish - Post:Tin
• Contact Material:-
• Insulation Material:Polyester, Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):-
• Voltage Rating:-
