5015681507

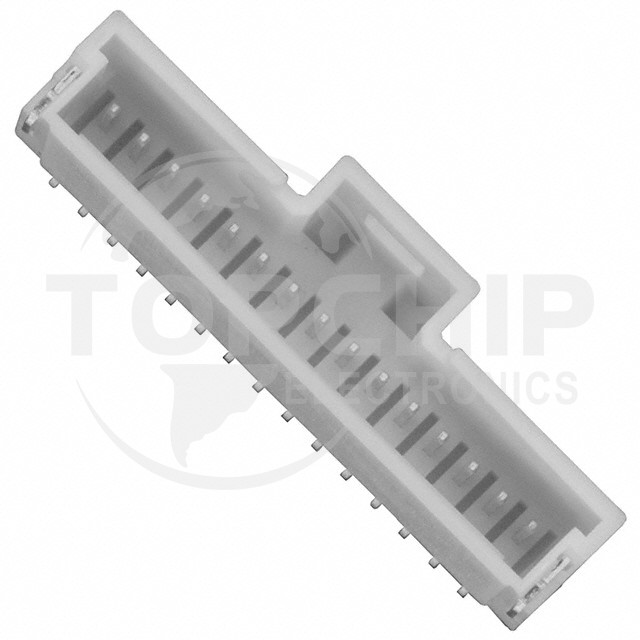

Image is for reference, please contact us to get the real picture

Manufacturer Part
5015681507
Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 15POS 1MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
4303
Datasheets
-

5015681507 Specifications

  • Series:Pico-Clasp 501568
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.185" (4.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:40.0µin (1.02µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-
