0026482105

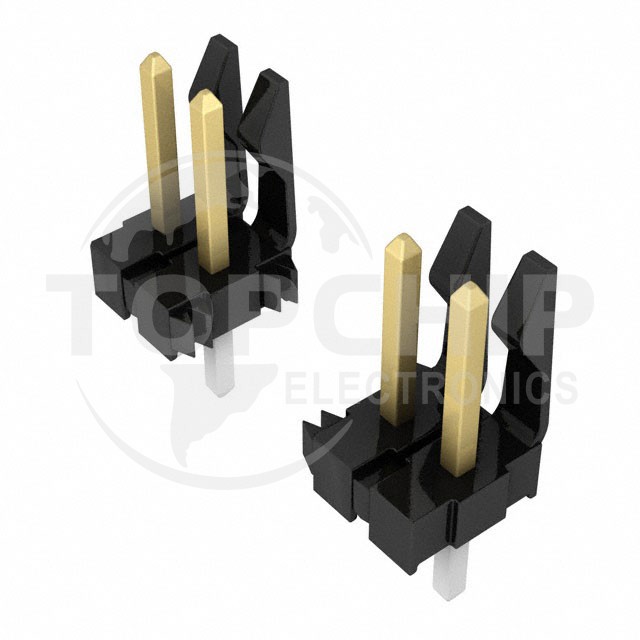

Image is for reference, please contact us to get the real picture

Manufacturer Part
0026482105
Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 10POS 3.96MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1291
Datasheets
-

0026482105 Specifications

  • Series:KK396, 41671
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.450" (11.43mm)
  • Contact Length - Post:0.172" (4.37mm)
  • Overall Contact Length:0.750" (19.05mm)
  • Insulation Height:0.500" (12.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
