2119370003

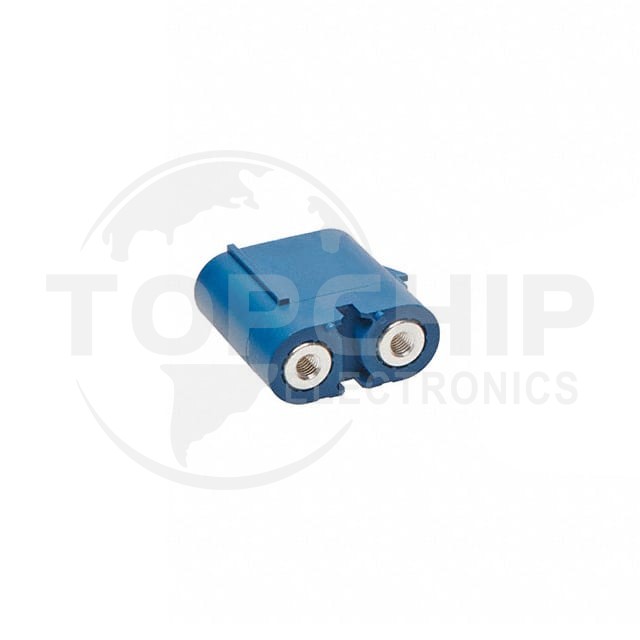

Image is for reference, please contact us to get the real picture

Manufacturer Part
2119370003
Manufacturer
Woodhead - Molex
Description
CONN HEADER SURFACE MOUNT 2POS
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
139
Datasheets
-

2119370003 Specifications

  • Series:Coeur CST 211937
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:2
  • Number of Rows:2
  • Row Spacing - Mating:0.750" (19.05mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Screw
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:1.562" (39.66mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Silver
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Silver
  • Contact Material:Copper Alloy
  • Insulation Material:Polyester
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):120A
  • Voltage Rating:300V
