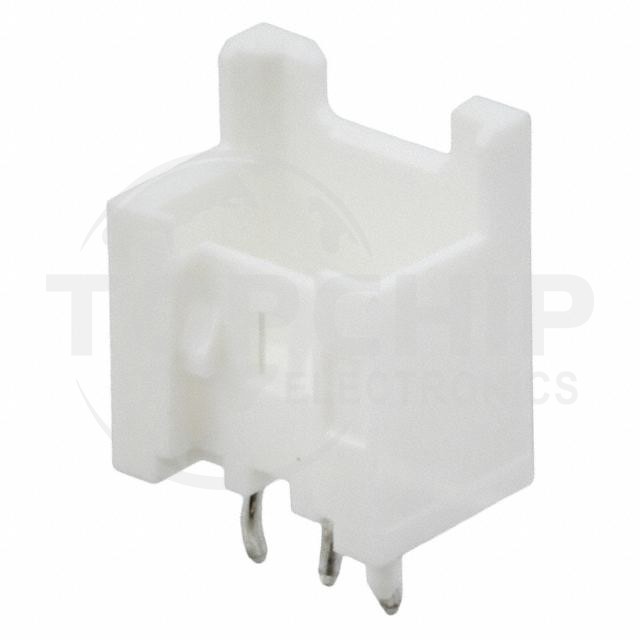

0533750310 Specifications

• Series:Mini-Lock 53375
• Package:Bag
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:3
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Kinked Pin, Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:0.157" (4.00mm)
• Contact Length - Post:0.134" (3.40mm)
• Overall Contact Length:-
• Insulation Height:0.453" (11.50mm)
• Contact Shape:Circular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Polybutylene Terephthalate (PBTP), Glass Filled
• Features:Board Guide
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:White
• Current Rating (Amps):Varies by Wire Gauge
• Voltage Rating:250V
