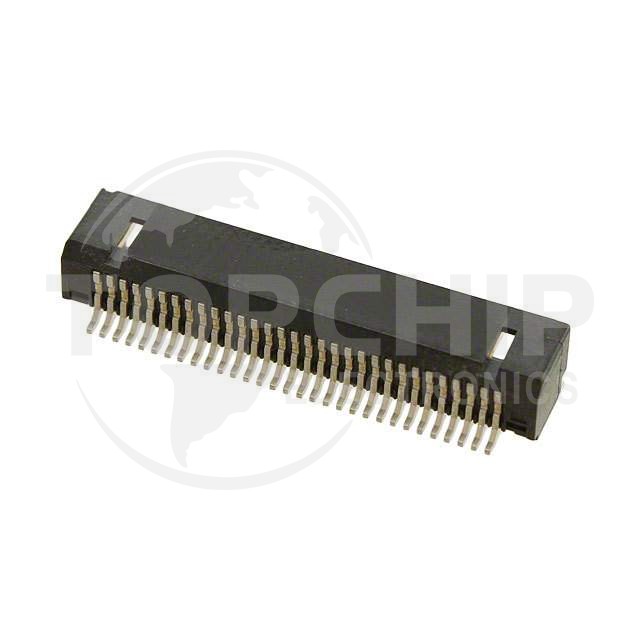

FI-W31P-HFE Specifications

• Series:FI
• Package:Tray
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Male Pin
• Pitch - Mating:0.049" (1.25mm)
• Number of Positions:31
• Number of Rows:2
• Row Spacing - Mating:0.055" (1.40mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.094" (2.40mm)
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.146" (3.70mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin or Tin-Alloy
• Contact Material:Copper Alloy
• Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
• Features:Solder Retention
• Operating Temperature:-40°C ~ 80°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):1A per Contact
• Voltage Rating:200V
