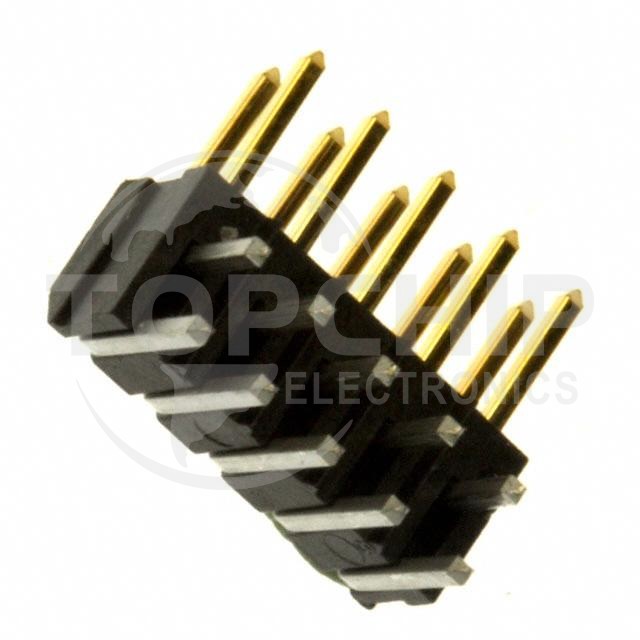

58102-G61-05LF Specifications

• Series:Minitek®
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.157" (4.00mm)
• Contact Length - Post:0.098" (2.50mm)
• Overall Contact Length:-
• Insulation Height:0.165" (4.20mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold, GXT™
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:-
• Contact Material:Copper Alloy
• Insulation Material:Thermoplastic
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):2A (AC/DC)
• Voltage Rating:200V (AC/DC)
