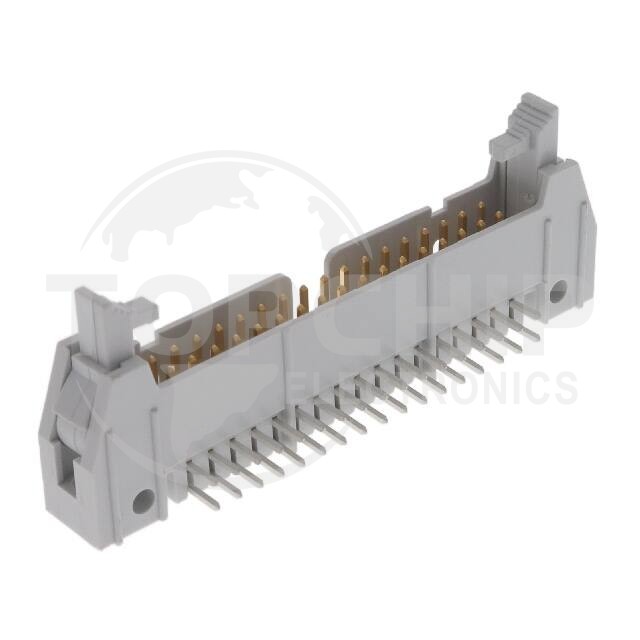

71922-234LF Specifications

• Series:Quickie™
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:34
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Latch Lock/Eject Hooks, Short
• Contact Length - Mating:0.228" (5.80mm)
• Contact Length - Post:0.114" (2.90mm)
• Overall Contact Length:-
• Insulation Height:0.339" (8.61mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold, GXT™
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Thermoplastic, Glass Filled
• Features:Keying Slot, Mounting Flange
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Gray
• Current Rating (Amps):-
• Voltage Rating:-
