10132450-1021GLF

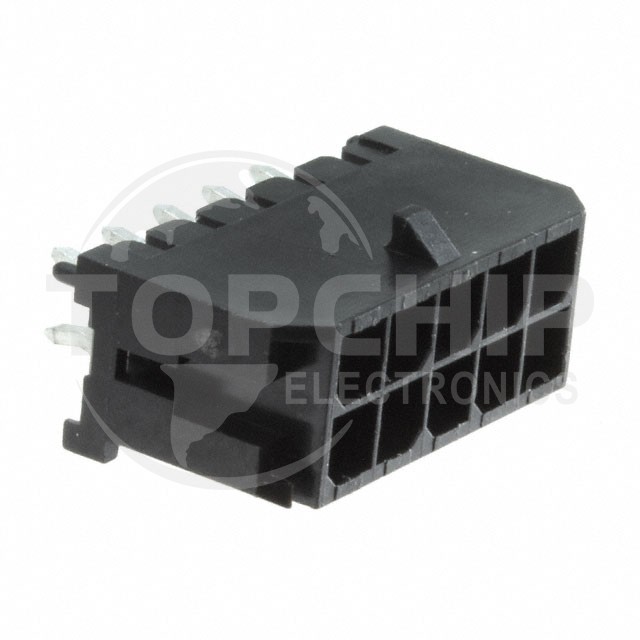

Image is for reference, please contact us to get the real picture

Manufacturer Part
10132450-1021GLF
Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER VERT 10POS 3MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
4957
Datasheets
-

10132450-1021GLF Specifications

  • Series:Minitek® Pwr 3.0 High Current
  • Package:Tray
  • Part Status:Active
  • Connector Type:Plug
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:250V
