FI-S10P-HFE

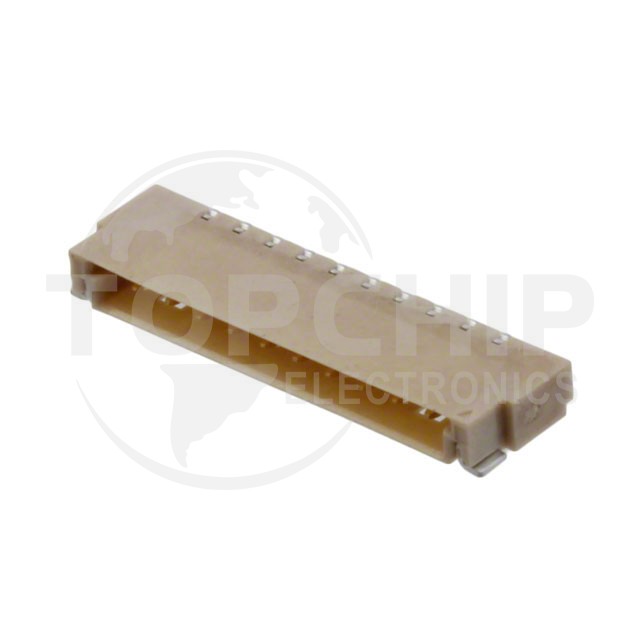

Image is for reference, please contact us to get the real picture

Manufacturer Part
FI-S10P-HFE
Manufacturer
JAE Electronics
Description
CONN HEADER SMD R/A 10POS 1.25MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
424
Datasheets
-

FI-S10P-HFE Specifications

  • Series:FI
  • Package:Strip
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.071" (1.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin or Tin-Alloy
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 80°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:200V
