N3440-5202RB In Stock | 3M N3440-5202RB |www.topchipelec.com

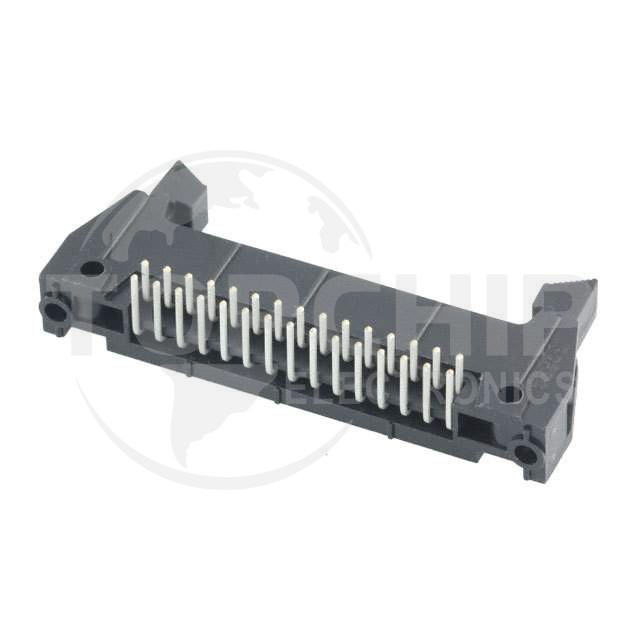

Image is for reference, please contact us to get the real picture

Series:3000
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Short
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.112" (2.84mm)
Overall Contact Length:-
Insulation Height:0.340" (8.64mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.75A
Voltage Rating:-
