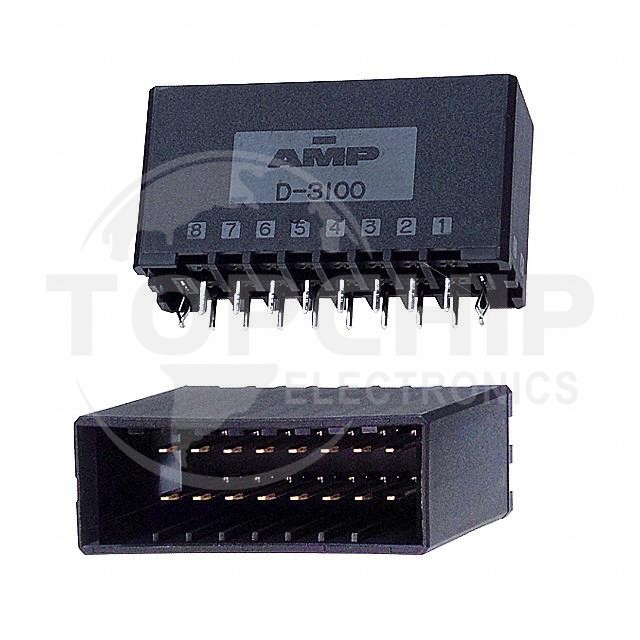

178327-3 Specifications

• Series:Dynamic D-3100
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Tab
• Pitch - Mating:0.150" (3.81mm)
• Number of Positions:16
• Number of Rows:2
• Row Spacing - Mating:0.200" (5.08mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Detent Lock
• Contact Length - Mating:-
• Contact Length - Post:0.150" (3.81mm)
• Overall Contact Length:-
• Insulation Height:0.850" (21.59mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Thermoplastic, Polyester, Glass Filled
• Features:Board Lock
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:250V
