1-178317-3

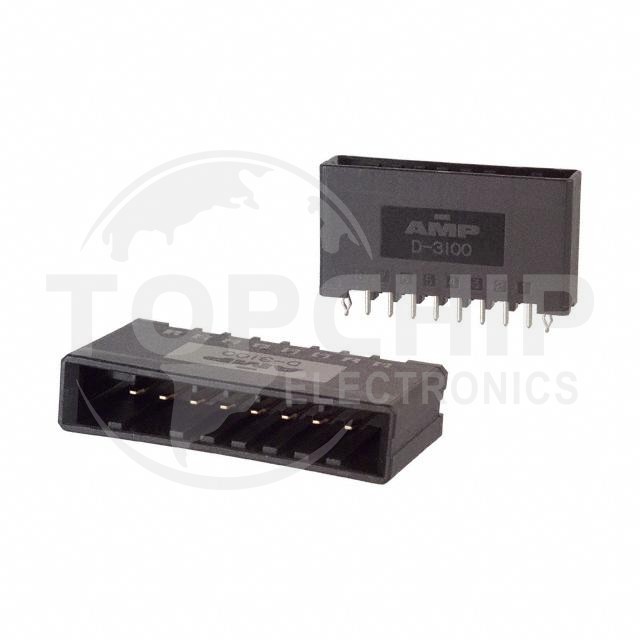

Image is for reference, please contact us to get the real picture

Manufacturer Part
1-178317-3
Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 8POS 3.81MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
893
Datasheets
-

1-178317-3 Specifications

  • Series:Dynamic D-3100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.150" (3.81mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-
  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.850" (21.59mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:250V
