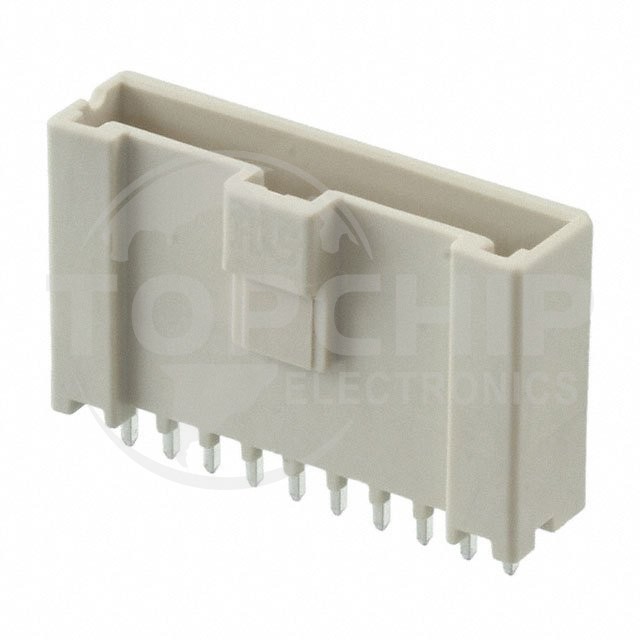

DF1EG-10P-2.5DSA(35) Specifications

• Series:DF1E
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:10
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:0.177" (4.50mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:-
• Insulation Height:0.642" (16.30mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:-
• Operating Temperature:-35°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):3A
• Voltage Rating:-
