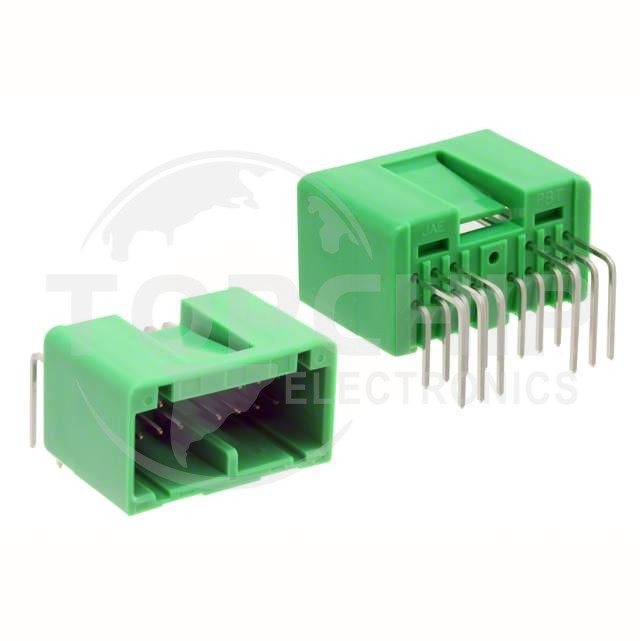

IL-AG5-14P-D3L2-A Specifications

• Series:IL-AG5
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:14
• Number of Rows:2
• Row Spacing - Mating:0.118" (3.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.331" (8.40mm)
• Contact Length - Post:0.138" (3.50mm)
• Overall Contact Length:-
• Insulation Height:0.591" (15.00mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polybutylene Terephthalate (PBT)
• Features:Board Guide
• Operating Temperature:-40°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Green
• Current Rating (Amps):3A per Contact
• Voltage Rating:-
