61002418221

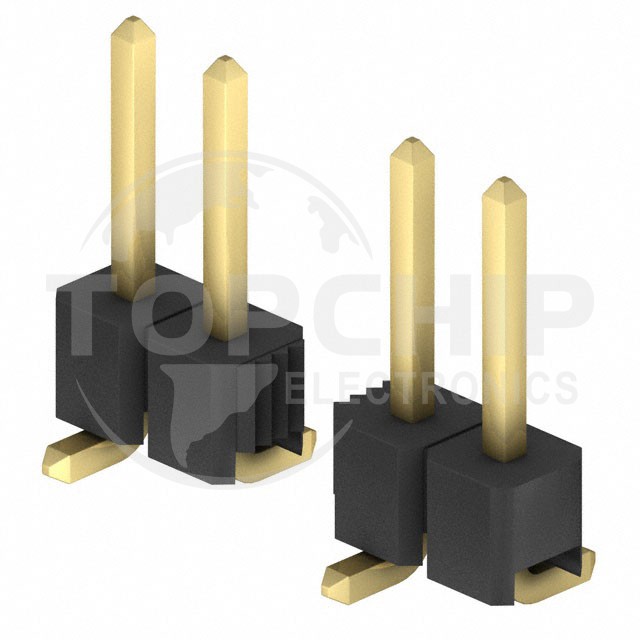

Image is for reference, please contact us to get the real picture

Manufacturer Part
61002418221
Manufacturer
Wurth Elektronik Midcom
Description
CONN HEADER SMD 24POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
38
Datasheets
-

61002418221 Specifications

  • Series:WR-PHD
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250V
