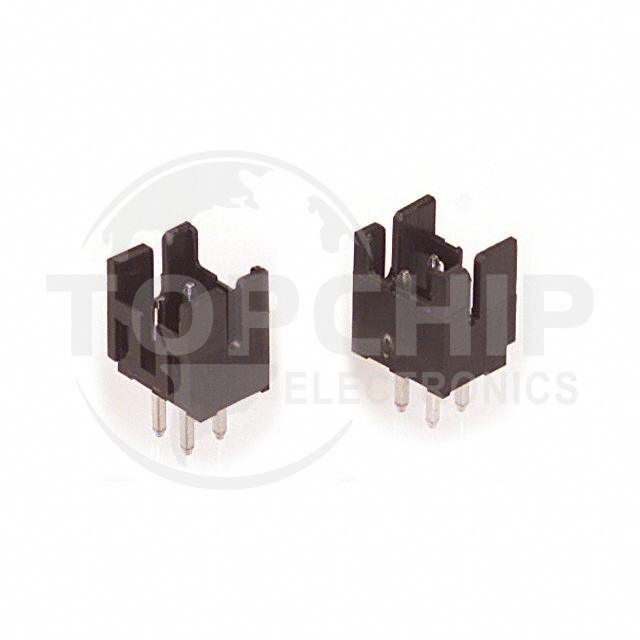

DF11-4DP-2DSA(24) Specifications

• Series:DF11
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:4
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Detent Lock
• Contact Length - Mating:0.118" (3.00mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:0.299" (7.60mm)
• Insulation Height:0.260" (6.60mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:-
• Operating Temperature:-30°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):2A
• Voltage Rating:250V
