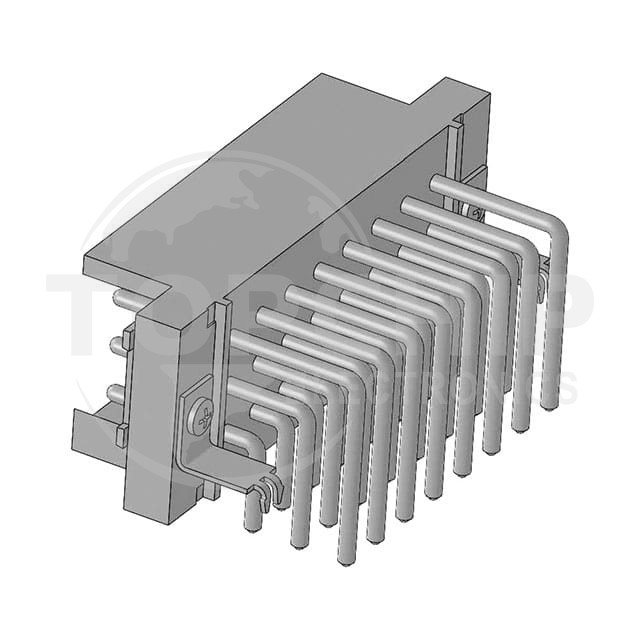

PM324MRAOSB Specifications

• Series:PowerMod®
• Package:Box
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin, Power
• Pitch - Mating:0.197" (5.00mm)
• Number of Positions:24
• Number of Rows:3
• Row Spacing - Mating:0.197" (5.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 2 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:-
• Contact Length - Mating:-
• Contact Length - Post:0.150" (3.81mm)
• Overall Contact Length:-
• Insulation Height:0.800" (20.32mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Tin Alloy
• Contact Material:Copper Alloy
• Insulation Material:Polyphenylene Sulfide (PPS)
• Features:Board Lock, Mounting Bracket
• Operating Temperature:-55°C ~ 180°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):30A
• Voltage Rating:600V
