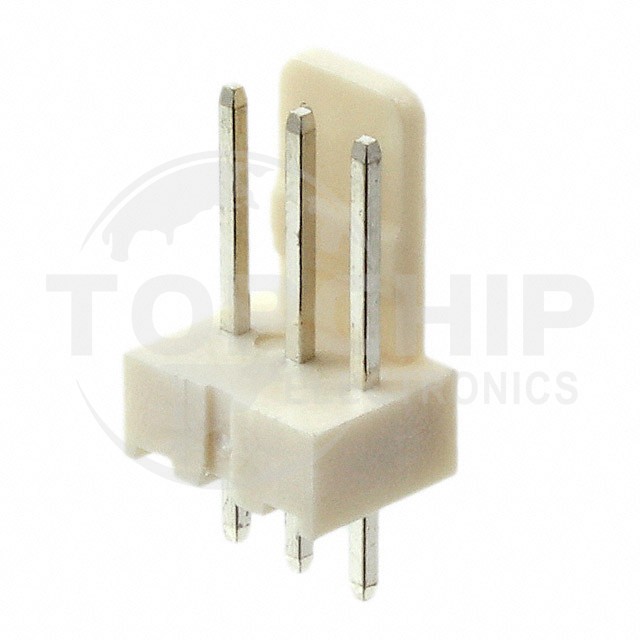

61900311121 Specifications

• Series:WR-WTB
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:3
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.295" (7.49mm)
• Contact Length - Post:0.134" (3.40mm)
• Overall Contact Length:0.559" (14.20mm)
• Insulation Height:0.453" (11.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Beige
• Current Rating (Amps):3A
• Voltage Rating:250V
