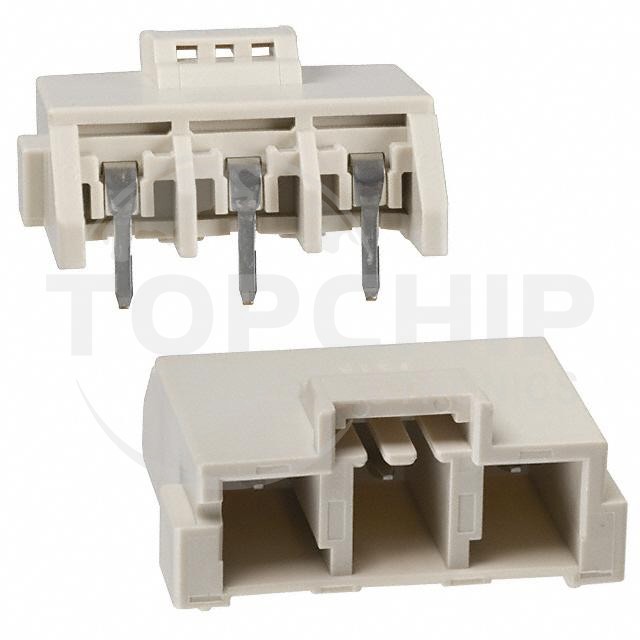

DF22-3P-7.92DS(05) Specifications

• Series:EnerBee™ DF22
• Package:Bulk
• Part Status:Last Time Buy
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.312" (7.92mm)
• Number of Positions:3
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:0.354" (9.00mm)
• Contact Length - Post:0.146" (3.70mm)
• Overall Contact Length:-
• Insulation Height:0.480" (12.20mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin-Copper
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA), Nylon
• Features:Board Guide
• Operating Temperature:-35°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Beige
• Current Rating (Amps):25A
• Voltage Rating:1000V
