DE1301

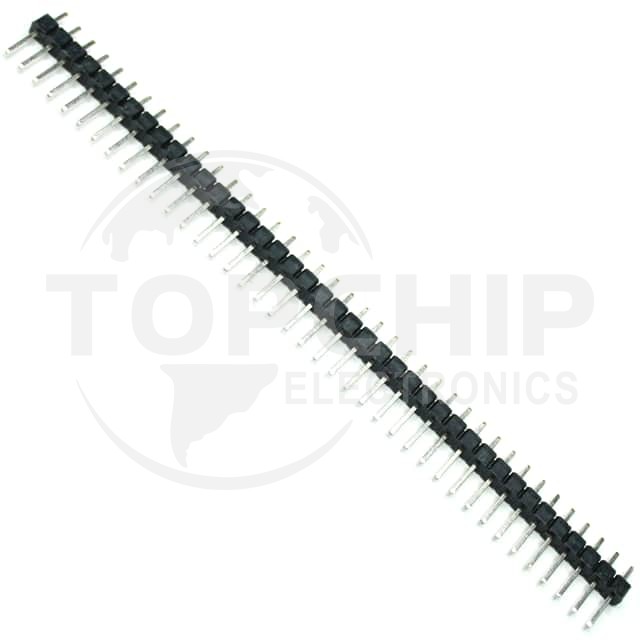

Image is for reference, please contact us to get the real picture

Manufacturer Part
DE1301
Manufacturer
Dreyer Electronics LLC
Description
CONN HEADER VERT 40POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1950
Datasheets
-

DE1301 Specifications

  • Series:-
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:-
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.453" (11.50mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:-
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:-
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:-
  • Current Rating (Amps):3A
  • Voltage Rating:-
