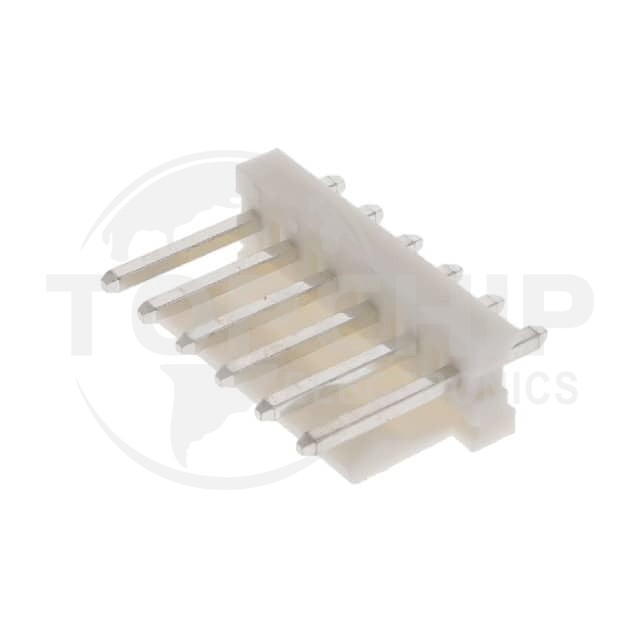

LHD-06-TS Specifications

• Series:LHD
• Package:Bag
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.156" (3.96mm)
• Number of Positions:6
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.448" (11.38mm)
• Contact Length - Post:0.142" (3.60mm)
• Overall Contact Length:0.715" (18.16mm)
• Insulation Height:0.425" (10.80mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-2
• Insulation Color:White
• Current Rating (Amps):7A
• Voltage Rating:-
