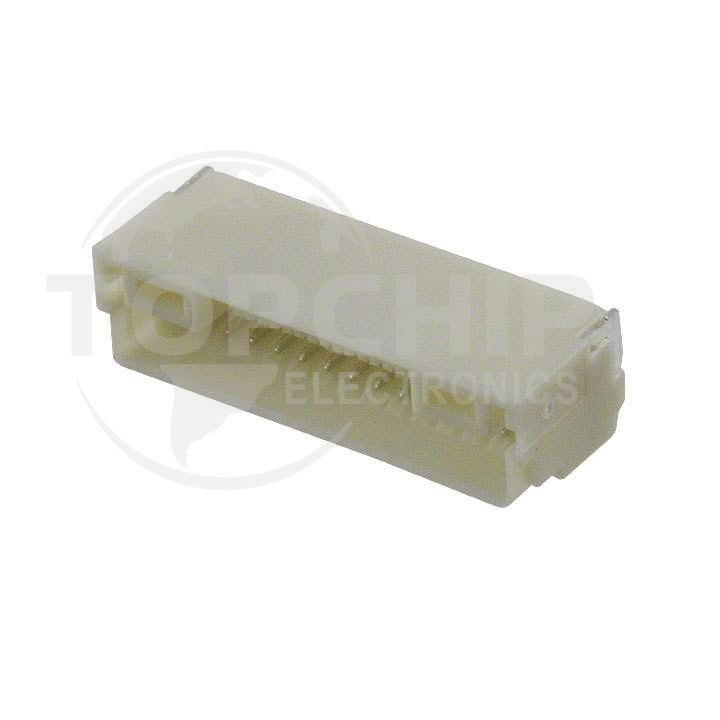

BM15B-NSHSS-TBT(LF)(SN)

Image is for reference, please contact us to get the real picture

Manufacturer Part
BM15B-NSHSS-TBT(LF)(SN)
Manufacturer
JST
Description
CONN HEADER SMD 15POS 1MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1790
Datasheets
-

BM15B-NSHSS-TBT(LF)(SN) Specifications

  • Series:NSH
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.236" (6.00mm)
  • Contact Shape:-
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Pick and Place, Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:50V
