BM02B-ACHSS-GAN-ETF(LF)(SN

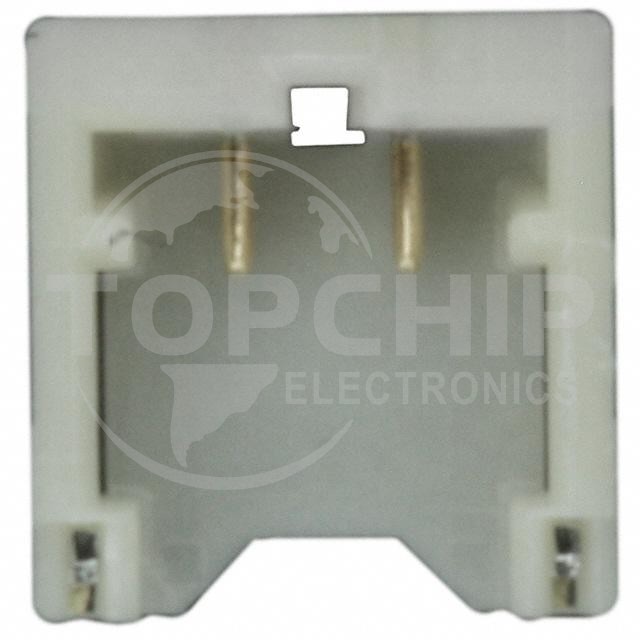

Image is for reference, please contact us to get the real picture

Manufacturer Part
BM02B-ACHSS-GAN-ETF(LF)(SN
Manufacturer
JST
Description
CONN HEADER SMD R/A 2POS 1.2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
38893
Datasheets
-

BM02B-ACHSS-GAN-ETF(LF)(SN Specifications

  • Series:ACH
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.047" (1.20mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.055" (1.40mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):2A
  • Voltage Rating:50V
