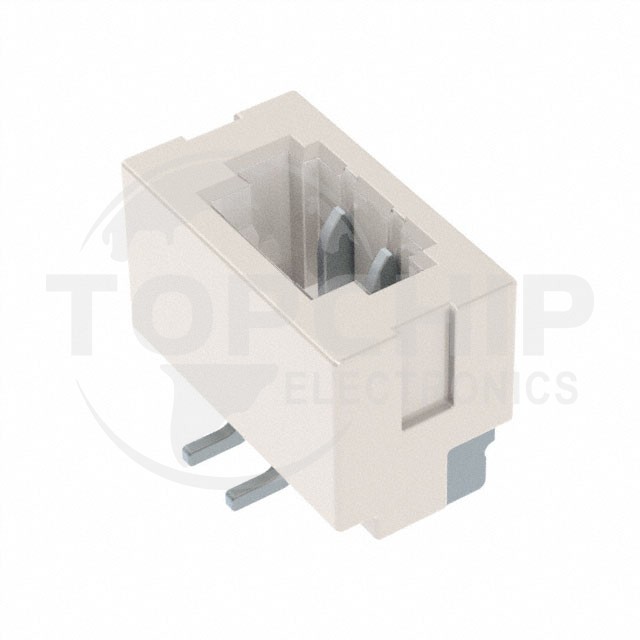

10144042-02011LF Specifications

• Series:Minitek® 0.80mm
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.031" (0.80mm)
• Number of Positions:2
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.106" (2.70mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Thermoplastic, Halogen Free
• Features:Glow Wire Compliant, Pick and Place, Solder Retention
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Cream
• Current Rating (Amps):1A
• Voltage Rating:30VAC
