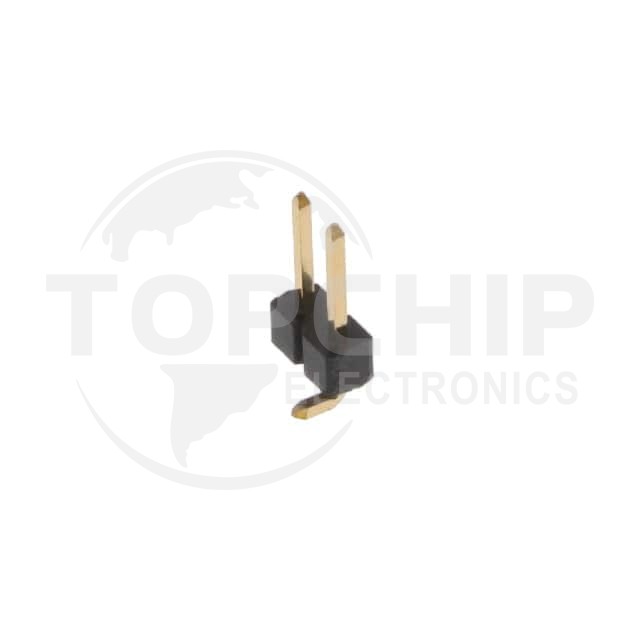

10129378-936004BLF Specifications

• Series:EconoStik™ 10129378
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Cuttable
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:36
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.318" (8.08mm)
• Contact Length - Post:0.090" (2.29mm)
• Overall Contact Length:0.508" (12.90mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:1.00µin (0.025µm)
• Contact Finish - Post:-
• Contact Material:Copper Alloy
• Insulation Material:Thermoplastic
• Features:-
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:-
