335-40-132-00-160000

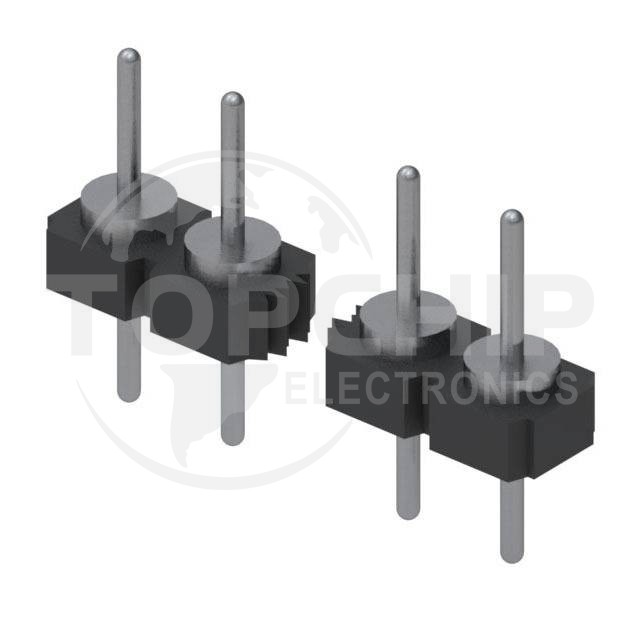

Image is for reference, please contact us to get the real picture

Manufacturer Part
335-40-132-00-160000
Manufacturer
Mill-Max
Description
CONN HEADER VERT 32POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
473
Datasheets
-

335-40-132-00-160000 Specifications

  • Series:335
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:32
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.125" (3.18mm)
  • Contact Length - Post:0.104" (2.64mm)
  • Overall Contact Length:0.299" (7.60mm)
  • Insulation Height:0.050" (1.27mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:100V, 150VDC
