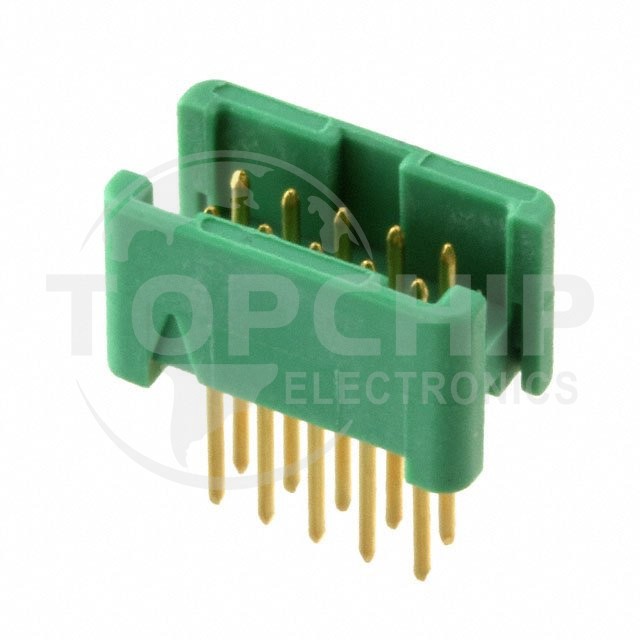

G125-MV21005L0P Specifications

• Series:Gecko
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.049" (1.25mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.049" (1.25mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:-
• Contact Length - Post:0.177" (4.50mm)
• Overall Contact Length:-
• Insulation Height:0.193" (4.90mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Contact Finish - Post:-
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
• Features:Board Lock, Pick and Place
• Operating Temperature:-65°C ~ 150°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Green
• Current Rating (Amps):2A per Contact
• Voltage Rating:-
