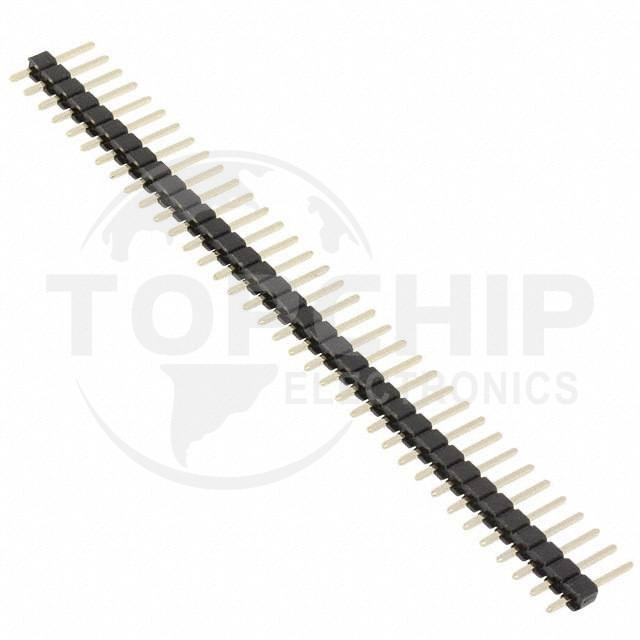

61303611121 Specifications

• Series:WR-PHD
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:36
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.236" (6.00mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:0.454" (11.54mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:-
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA6T), Nylon 6T
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):3A
• Voltage Rating:250V
