MX47039NF1

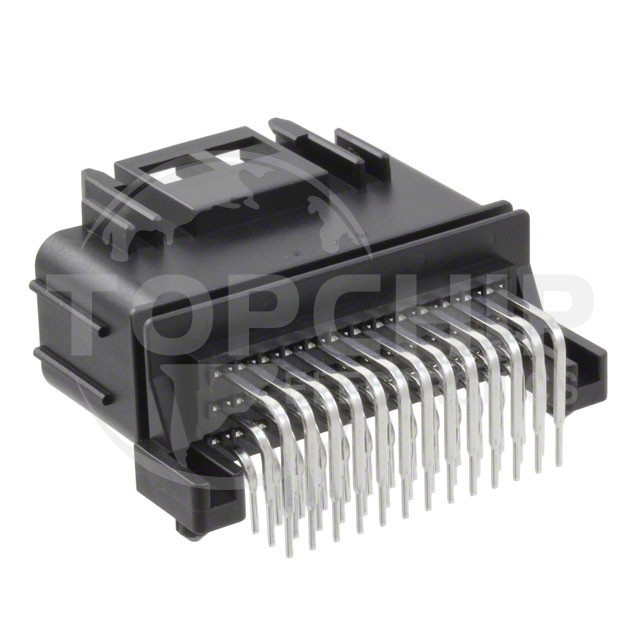

Image is for reference, please contact us to get the real picture

Manufacturer Part
MX47039NF1
Manufacturer
JAE Electronics
Description
CONN HEADER R/A 39POS 2.5MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1168
Datasheets
-

MX47039NF1 Specifications

  • Series:MX47
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:39
  • Number of Rows:3
  • Row Spacing - Mating:0.142" (3.60mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.760" (19.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:Waterproof
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-
