ATF13-12PA-BM33

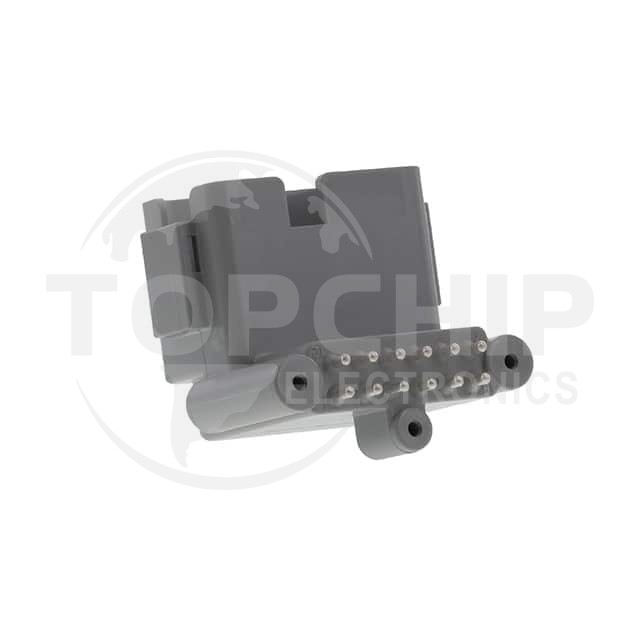

Image is for reference, please contact us to get the real picture

Manufacturer Part
ATF13-12PA-BM33
Manufacturer
Tuchel / Amphenol
Description
BOARD MOUNT HEADER, RIGHT ANGLE,
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
28
Datasheets
-

ATF13-12PA-BM33 Specifications

  • Series:BoardLock™ AT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.174" (4.42mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:1.504" (38.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):13A
  • Voltage Rating:250VDC
