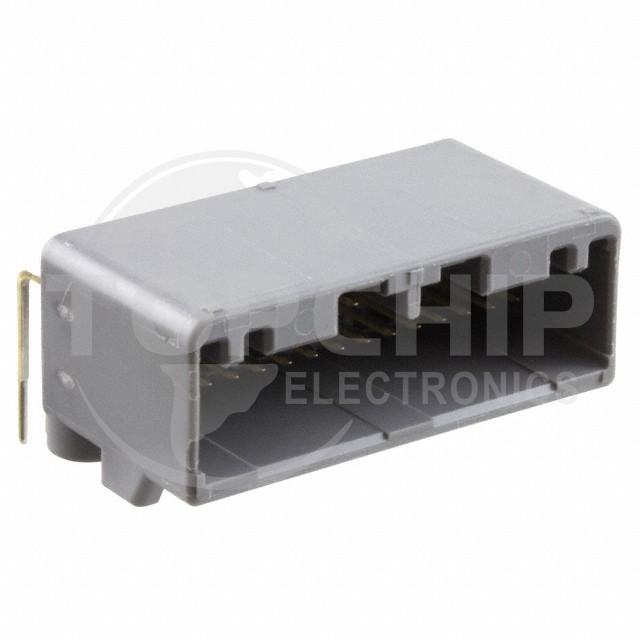

MX34028NF2 Specifications

• Series:MX34
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.087" (2.20mm)
• Number of Positions:28
• Number of Rows:2
• Row Spacing - Mating:0.118" (3.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:0.303" (7.70mm)
• Contact Length - Post:0.126" (3.20mm)
• Overall Contact Length:-
• Insulation Height:0.626" (15.90mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
• Features:Mounting Flange
• Operating Temperature:-40°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Gray
• Current Rating (Amps):3A
• Voltage Rating:-
