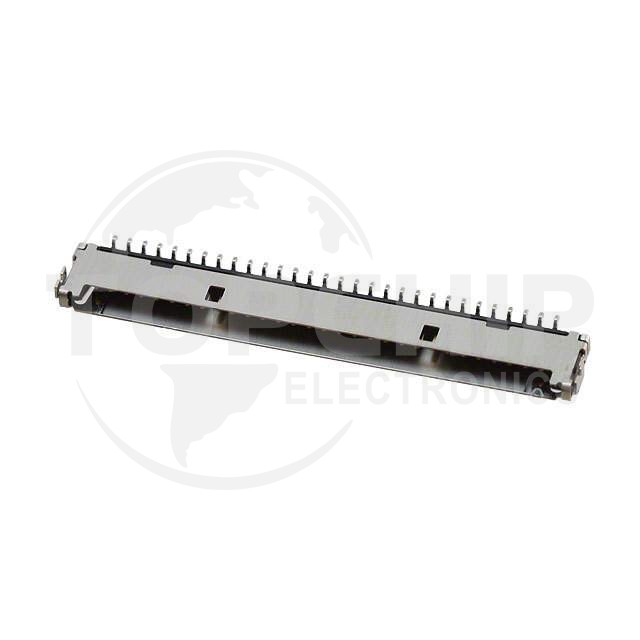

DF19G-30P-1H(54) Specifications

• Series:DF19
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Last Time Buy
• Connector Type:Receptacle
• Contact Type:Male Pin
• Pitch - Mating:0.039" (1.00mm)
• Number of Positions:30
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 3 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.065" (1.65mm)
• Contact Shape:-
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:3.90µin (0.099µm)
• Contact Finish - Post:Tin-Copper
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA), Nylon
• Features:Glow Wire Compliant, Shielded, Solder Retention
• Operating Temperature:-35°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:100V
