DF51K-4P-2DS(800)

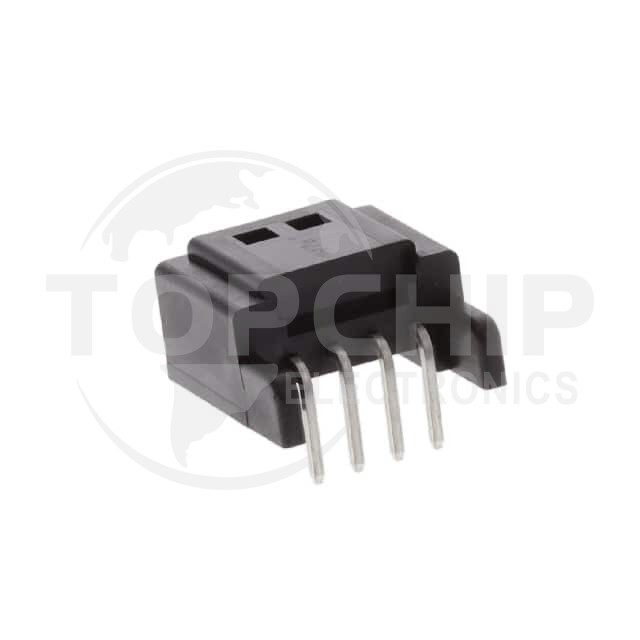

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF51K-4P-2DS(800)
Manufacturer
Hirose
Description
CONN HDR 2MM SNGL TIN R/A 4POS
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
48
Datasheets
-

DF51K-4P-2DS(800) Specifications

  • Series:SignalBee™ DF51K
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.248" (6.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC/DC
