HIF3BA-14P-2.54W(63)

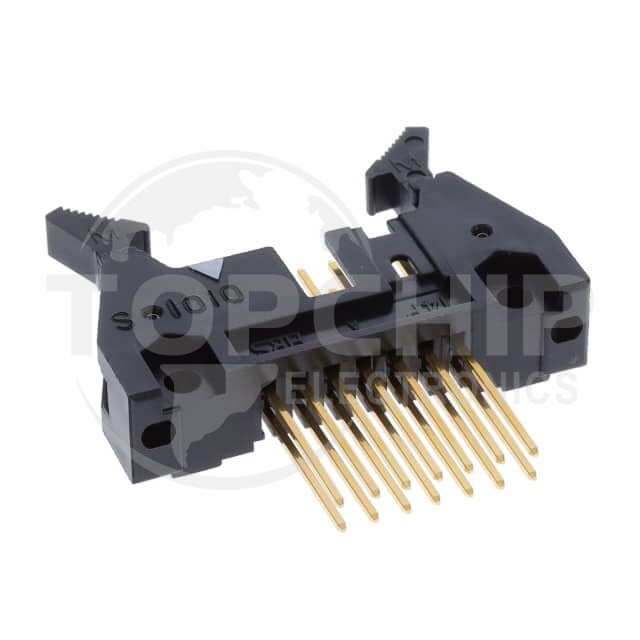

Image is for reference, please contact us to get the real picture

Manufacturer Part
HIF3BA-14P-2.54W(63)
Manufacturer
Hirose
Description
CONN HEADER VERT 14POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
10
Datasheets
-

HIF3BA-14P-2.54W(63) Specifications

  • Series:HIF3B
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Wire Wrap
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.701" (17.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:-
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:200V
