951103-7622-AR

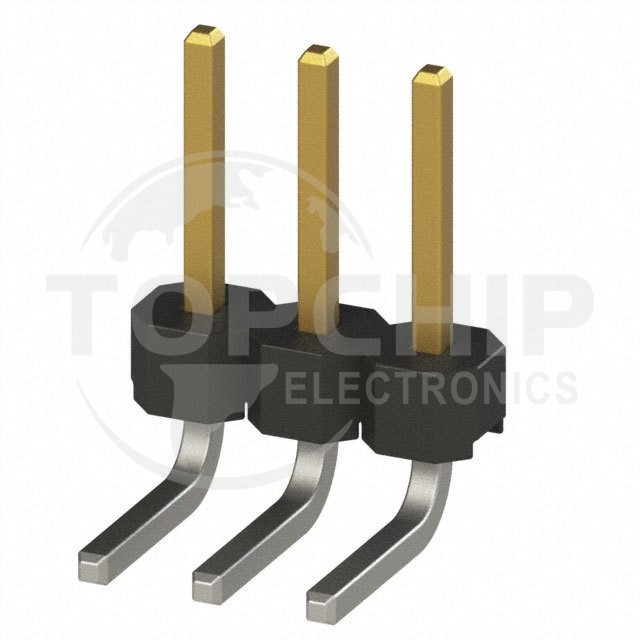

Image is for reference, please contact us to get the real picture

Manufacturer Part
951103-7622-AR
Manufacturer
3M
Description
CONN HEADER R/A 3POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
2531
Datasheets
-

951103-7622-AR Specifications

  • Series:951
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.173" (4.40mm)
  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.079" (2.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-
