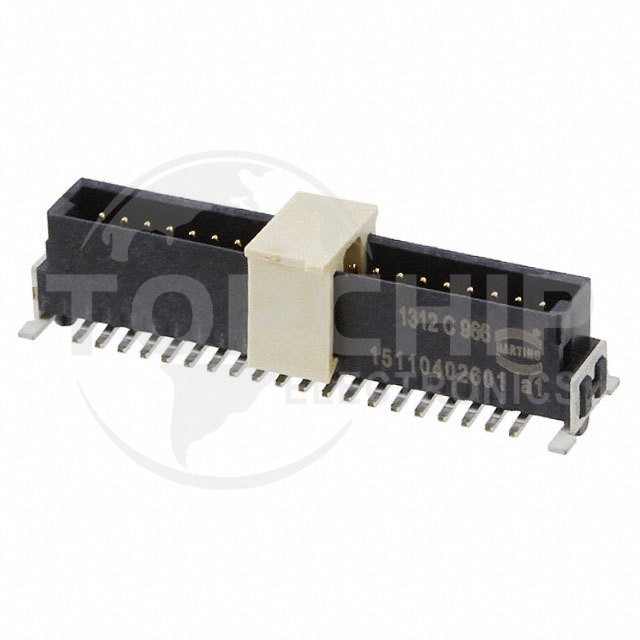

15110402601000 Specifications

• Series:har-flex®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:40
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.157" (4.00mm)
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.260" (6.60mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:Board Guide, Pick and Place, Solder Retention
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
