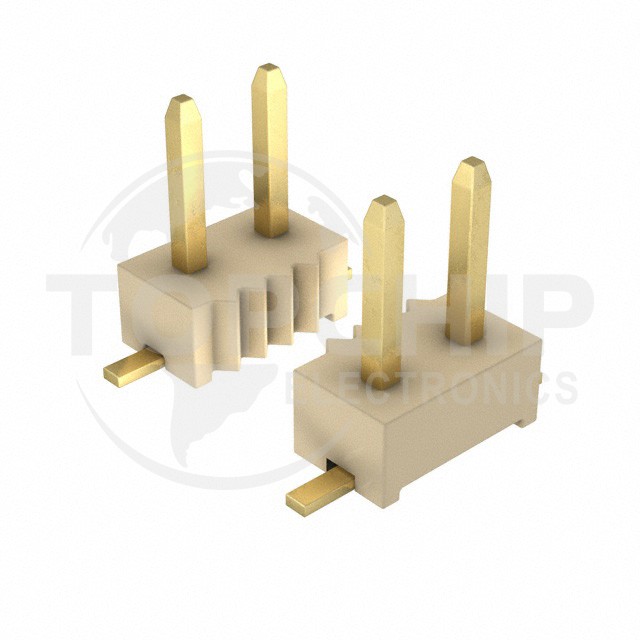

A3-6PA-2SV(71) Specifications

• Series:A3
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:6
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.138" (3.50mm)
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.071" (1.80mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Contact Finish - Post:Gold
• Contact Material:Brass
• Insulation Material:Polyphenylene Sulfide (PPS)
• Features:-
• Operating Temperature:-55°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Brown
• Current Rating (Amps):1A
• Voltage Rating:200V
