DF13-3P-1.25H(20)

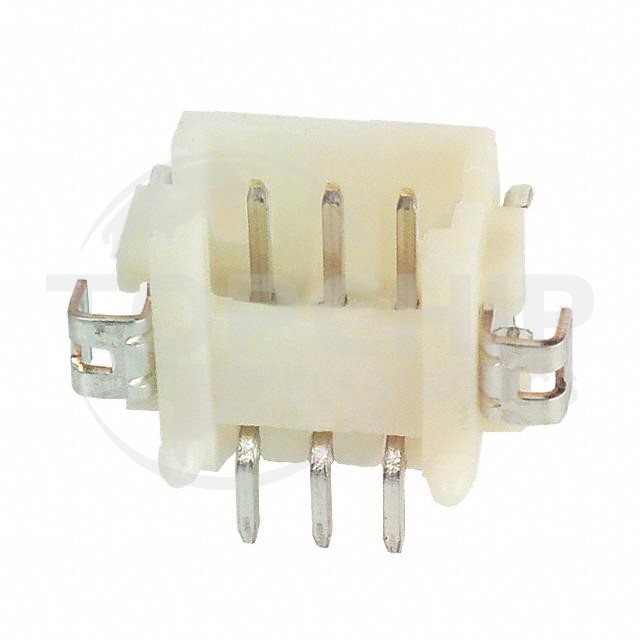

Image is for reference, please contact us to get the real picture

Manufacturer Part
DF13-3P-1.25H(20)
Manufacturer
Hirose
Description
CONN HEADER SMD R/A 3POS 1.25MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
537
Datasheets
-

DF13-3P-1.25H(20) Specifications

  • Series:DF13
  • Package:Tube
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.142" (3.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-35°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):1A
  • Voltage Rating:150V
