DML-1-04-A-H-T-A

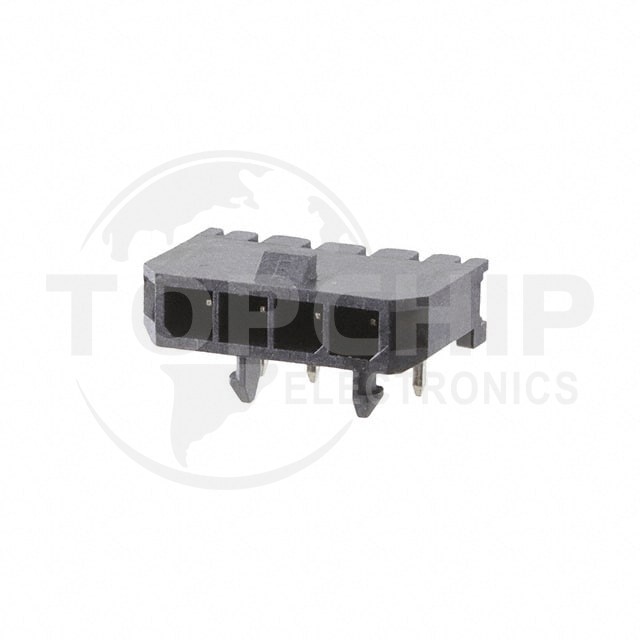

Image is for reference, please contact us to get the real picture

Manufacturer Part
DML-1-04-A-H-T-A
Manufacturer
Adam Tech
Description
CONN HEADER R/A 4POS 3MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
498
Datasheets
-

DML-1-04-A-H-T-A Specifications

  • Series:DML
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.172" (4.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):5A
  • Voltage Rating:250VAC
