61301421021

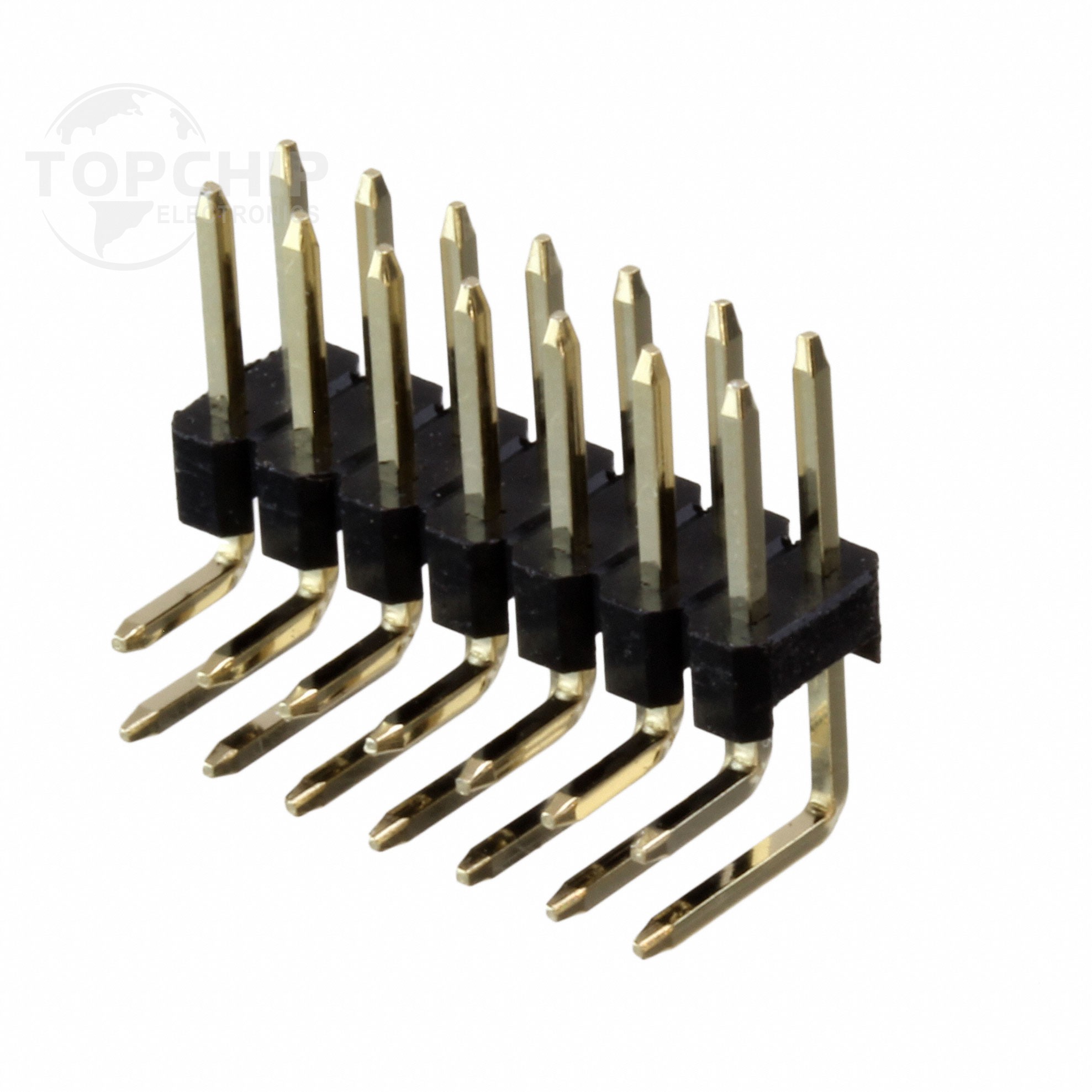

Image is for reference, please contact us to get the real picture

Manufacturer Part
61301421021
Manufacturer
Wurth Elektronik Midcom
Description
CONN HEADER R/A 14POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
942
Datasheets
-

61301421021 Specifications

  • Series:WR-PHD
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250V
