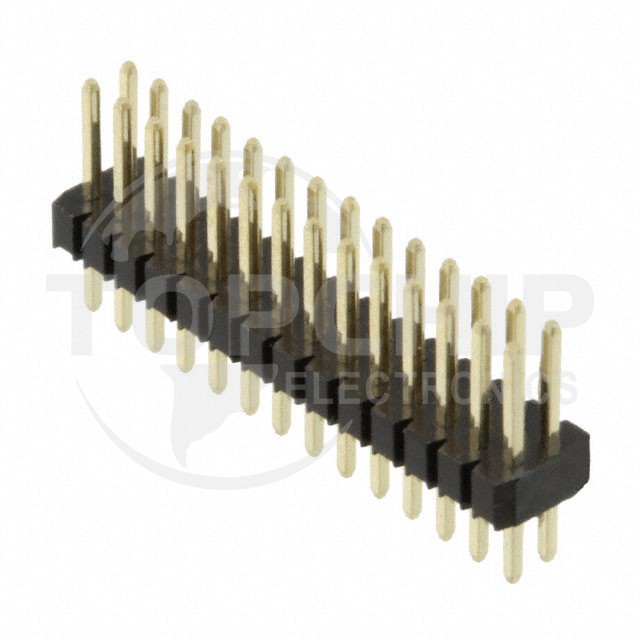

62202821121 Specifications

• Series:WR-PHD
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:28
• Number of Rows:2
• Row Spacing - Mating:0.050" (1.27mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.150" (3.81mm)
• Contact Length - Post:0.091" (2.30mm)
• Overall Contact Length:0.299" (7.60mm)
• Insulation Height:0.059" (1.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:-
• Contact Material:Copper Alloy
• Insulation Material:Polyamide (PA6T), Nylon 6T
• Features:-
• Operating Temperature:-40°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):1A
• Voltage Rating:50V
