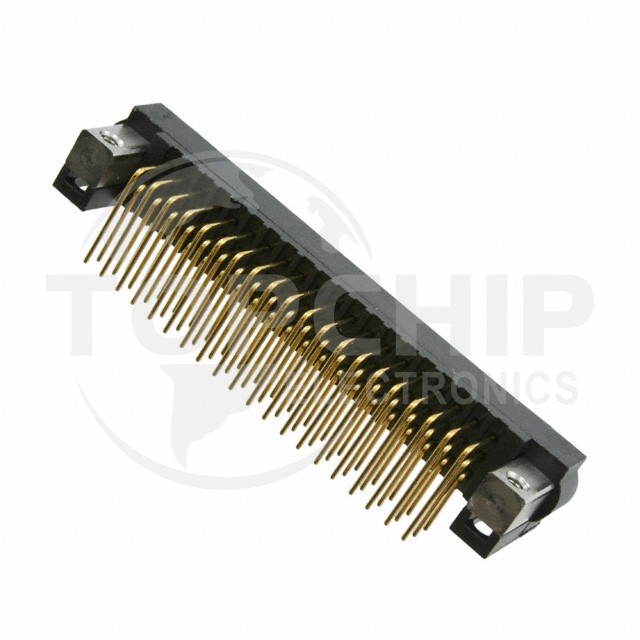

M83-LML3M1N60-0000-000 Specifications

• Series:Datamate J-Tek
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:60
• Number of Rows:3
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Threaded
• Contact Length - Mating:-
• Contact Length - Post:0.157" (4.00mm)
• Overall Contact Length:-
• Insulation Height:0.303" (7.70mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:29.5µin (0.75µm)
• Contact Finish - Post:-
• Contact Material:Phosphor Bronze
• Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
• Features:Mating Flange, Mounting Flange
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):2.2A per Contact
• Voltage Rating:800V
