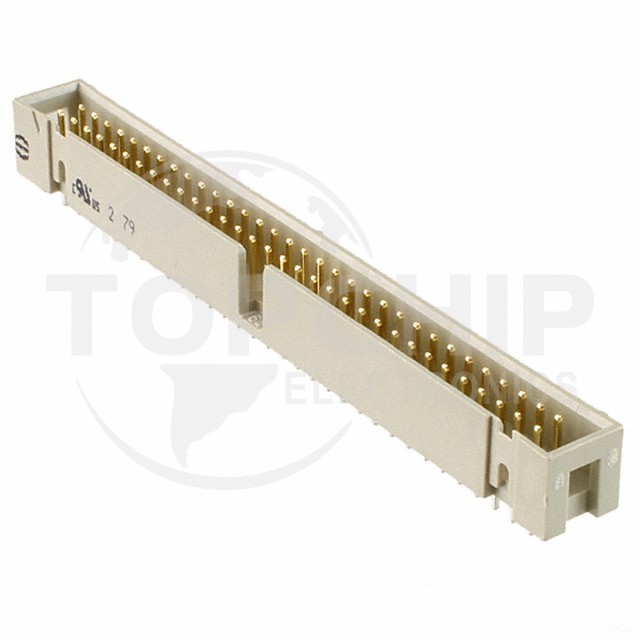

09185646324 Specifications

• Series:SEK
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:64
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:0.240" (6.10mm)
• Contact Length - Post:0.114" (2.90mm)
• Overall Contact Length:-
• Insulation Height:0.350" (8.89mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
• Features:Keying Slot
• Operating Temperature:-55°C ~ 125°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Gray
• Current Rating (Amps):-
• Voltage Rating:-
