M80-MV312M3-04

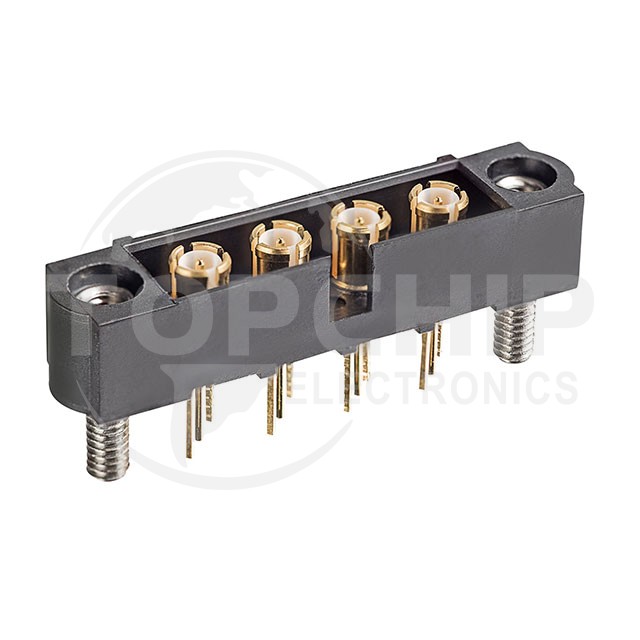

Image is for reference, please contact us to get the real picture

Manufacturer Part
M80-MV312M3-04
Manufacturer
Harwin
Description
CONN HEADER VERT 4POS 4MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
67
Datasheets
-

M80-MV312M3-04 Specifications

  • Series:Datamate Coax
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin, Coaxial
  • Pitch - Mating:0.157" (4.00mm)
  • Number of Positions:4 (Coax)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Threaded
  • Contact Length - Mating:-
  • Contact Length - Post:0.177" (4.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:-
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
