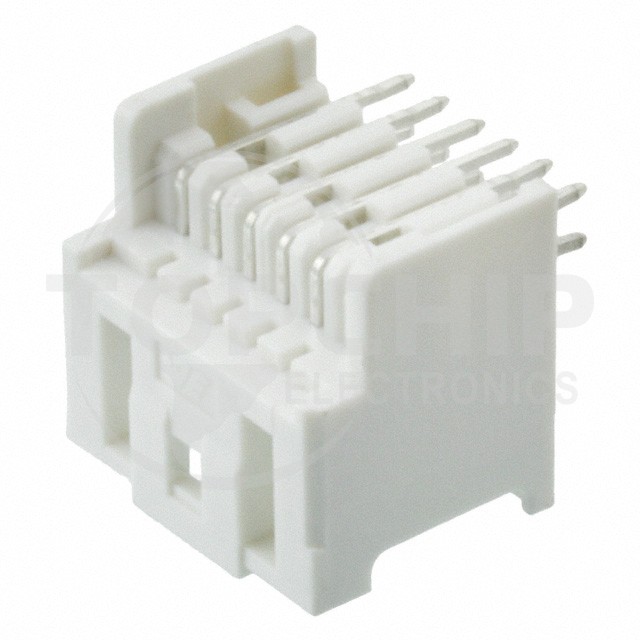

62401221722 Specifications

• Series:WR-WTB
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:12
• Number of Rows:2
• Row Spacing - Mating:0.197" (5.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Press-Fit, Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:-
• Contact Length - Post:0.126" (3.20mm)
• Overall Contact Length:-
• Insulation Height:0.453" (11.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polybutylene Terephthalate (PBT)
• Features:-
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:White
• Current Rating (Amps):3A
• Voltage Rating:250V
