09185167323

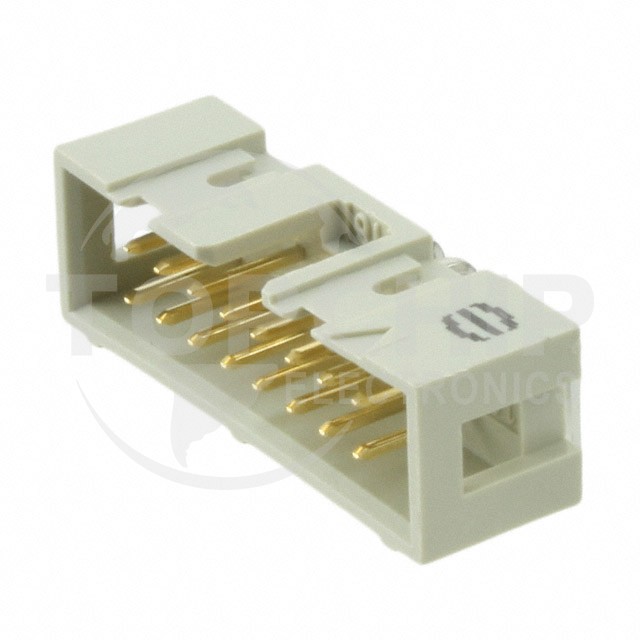

Image is for reference, please contact us to get the real picture

Manufacturer Part
09185167323
Manufacturer
HARTING
Description
CONN HEADER R/A 16POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
47
Datasheets
-

09185167323 Specifications

  • Series:SEK
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.242" (6.15mm)
  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.366" (9.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-
