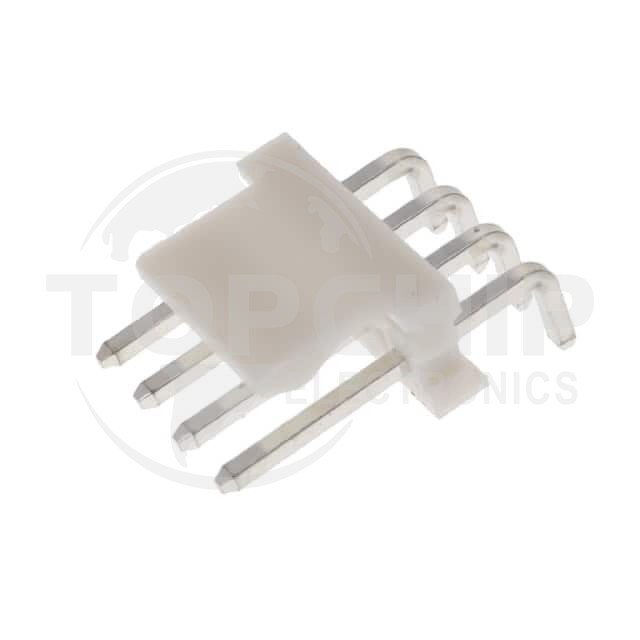

LHD-04-TRA Specifications

• Series:LHD
• Package:Bag
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.156" (3.96mm)
• Number of Positions:4
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.449" (11.40mm)
• Contact Length - Post:0.126" (3.20mm)
• Overall Contact Length:-
• Insulation Height:0.300" (7.62mm)
• Contact Shape:Square
• Contact Finish - Mating:-
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:-
• Contact Material:Brass
• Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-2
• Insulation Color:White
• Current Rating (Amps):7A
• Voltage Rating:-
