ESQT-116-02-G-D-720

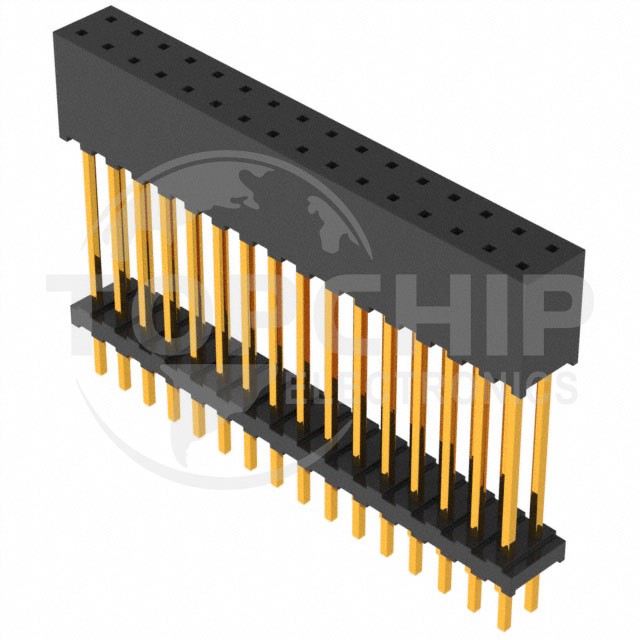

Image is for reference, please contact us to get the real picture

Manufacturer Part
ESQT-116-02-G-D-720
Manufacturer
Samtec, Inc.
Description
CONN SOCKET 32POS 0.079 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
11
Datasheets
-

ESQT-116-02-G-D-720 Specifications

  • Series:ESQT
  • Package:Tube
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Forked
  • Style:Board to Board or Cable
  • Number of Positions:32
  • Number of Positions Loaded:All
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Insulation Color:Black
  • Insulation Height:0.720" (18.30mm)
  • Contact Length - Post:0.130" (3.30mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.5A per Contact
  • Voltage Rating:-
