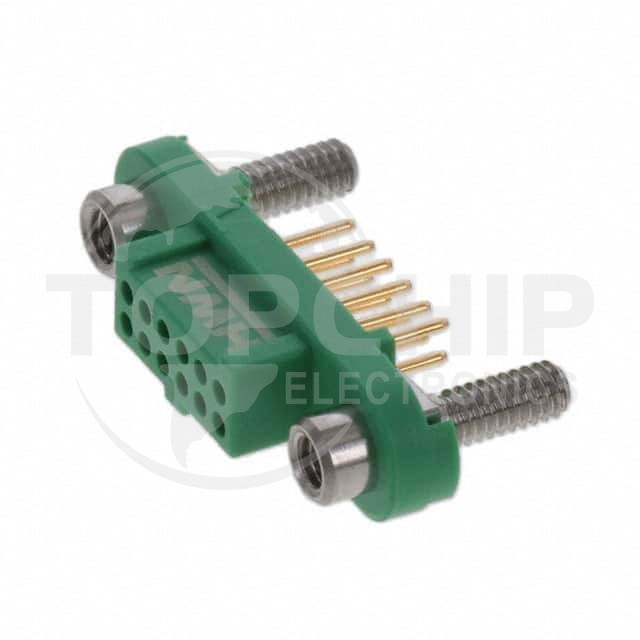

G125-FV11205F3P Specifications

• Series:Gecko SL
• Package:Cut Tape (CT)
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board or Cable
• Number of Positions:12
• Number of Positions Loaded:All
• Pitch - Mating:0.049" (1.25mm)
• Number of Rows:2
• Row Spacing - Mating:0.049" (1.25mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Screw Lock
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Insulation Color:Green
• Insulation Height:0.207" (5.25mm)
• Contact Length - Post:0.118" (3.00mm)
• Operating Temperature:-65°C ~ 150°C
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Gold
• Mated Stacking Heights:7.25mm, 7.33mm
• Ingress Protection:-
• Features:Jackscrews, Pick and Place, Polarizing Key
• Current Rating (Amps):2A
• Voltage Rating:450V
